Renard Plus RP32 Controller board

$11.00
No tax

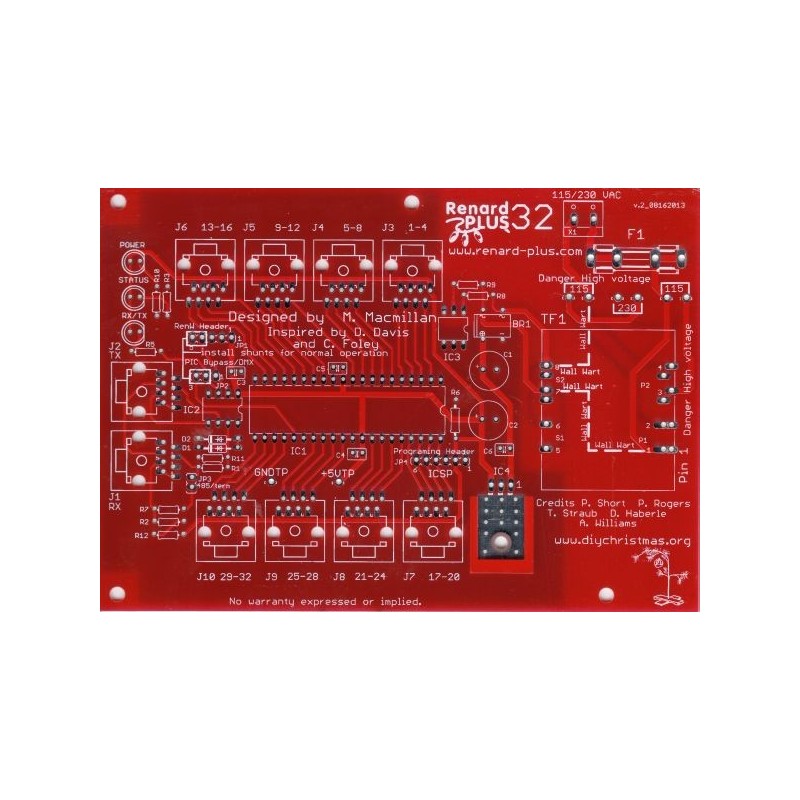

This is a Renard 32 channel bare board designed that is compatable with any of the Renard SSR boards. This is also compatable with DMX.

Volume discounts

Quantity Unit discount You Save
2 $1.00 Up to $2.00
Quantity

The Renard Plus 32 combo is a low cost 32 channel controller designed to drive either ACSSRs or DCSSRs which switch their loads close to the item being controlled. Unlike other Renard designs like the Renard 64XC, the Renard Plus 32 Combo makes use of a different PIC, the PIC18F4520. This PIC allows 32 chanels per PIC to be controlled compared to the usual 8 channels per PIC (16F688) used in most Renard designs. This allows a smaller board and lower total cost.

For Documentation and Bill Of material (BOM) lists please visit the Renard Plus Website.

4 Items

Download

PIC Programming Guide

Download (3.27MB)

Renard Plus RP-32 Firmware

Renard Plus RP-32 DMX/Renard Firmware

Download (77.47KB)

Renard Start Address Guide

Download (159.91KB)

RP RP-32 User Guide 20 r12

Download (1.66MB)
