8 Channel Solid State Relay Board
  • 8 Channel Solid State Relay Board

Renard Plus SSR8 - 8 Channel Solid State Relay Board

$7.00
No tax

This is a bare board designed to work with many of the Renard controllers such as the Renard Plus 32, Renard Plus 16, or other DIY boards such as the Renard 64XC.

Quantity
Out-of-Stock

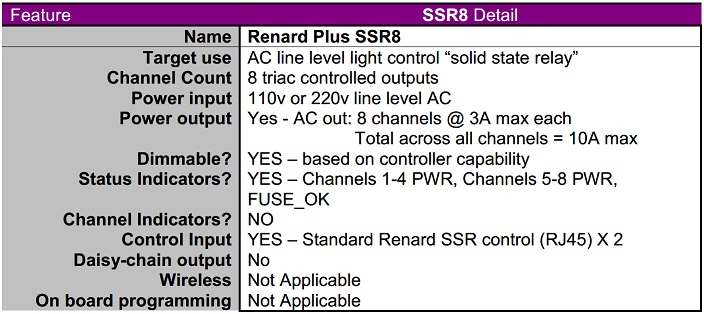

The SSR8 is an AC line level light control “solid state relay” for controlling lights. It is controlled by a Renard controller, like the Renard Plus 32 and provides the AC power output to the lights being controlled. It supports full dimming capability as controlled by the Renard controller. The SSR8, as the name implies, will control 8 channels worth of lights.

  • AC SSR
  • Ideal for general purpose light control
  • Renard style inputs (2)
  • 8 channel AC outputs (110 or 220)
  • 3A max individual channel capacity up to 10A max across all channels (with heat sinks)
  • Triac outputs are fully dimmable based on the capability of the Renard controlle

Download

AC SSR Manual

Download (2.44MB)
